Mono Block Pumps
We have with us A Smart Mono Block Pumps that are designed in accordance with international quality norms. "Capital" make Mono Block Pumps are widely used for water supply to Bunglows, Appartments, Hotels, Hospitals, Farm Housing, etc.
The products can be customized as per the specifications details by the customers to fulfill their exact requiremnts and demands.
Salient Features
- Aluminium extruded motor body - prevents corrosion
- Self priming upto 7.5mtr.
- Compact - seek look & robust construction
- High quality " long life mechanical
- Fitted with thermal overload protector (T.O.P.)
- Prevents motor for Burning
- TEFC Motor with IP - 44 Protection & class B Insulation
Material of Construction
- Pumping House : Cast Iron
- Impeller : Bronze
- Shaft : Carbon steel
- Motor Body: Extruded Aluminium
- Mechanical streel : Carbon Ceramic
Applications
- Water supply to Bunglows, Appartments, Hotels, Hospitals, Farm Housing, etc.

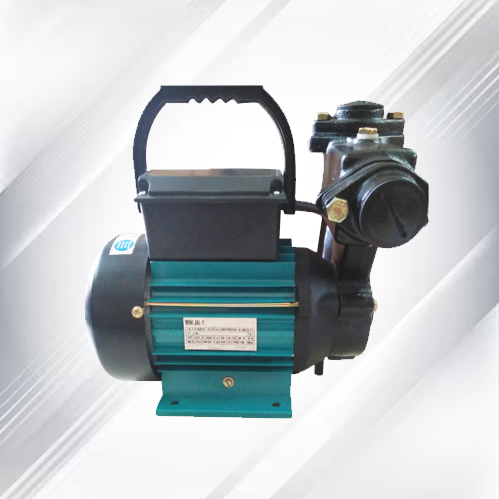

JAL-1
| HP | SC |
|---|---|
| Pump Set Model | Jal-1 |
| Discharge (Lph) | 4010-1120 |
| HP/KW | 1.0/0.75 |
| Rated Speed (rpm) | 2800 |
| Pipe Size (suc. X Del.) mm. | 25 X 25 |
| Head Range (meters) | 4-30 |
| Ampers | 4.0 |
| Rated Voltage (Volts) | 230 |

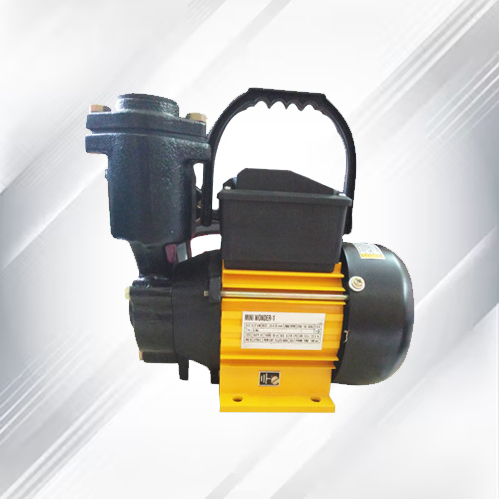

WONDER-1
| HP | SC |
|---|---|
| Pump Set Model | Wonder-1 |
| Discharge (Lph) | 2250-450 |
| KW/HP | 0.5/0.37 |
| Rated Speed (rpm) | 2800 |
| Pipe Size (suc. X Del.) mm. | 25 X 25 |
| Head Range (meters) | 4-24 |
| Ampers | 3.0 |
| Rated Voltage (Volts) | 230 |

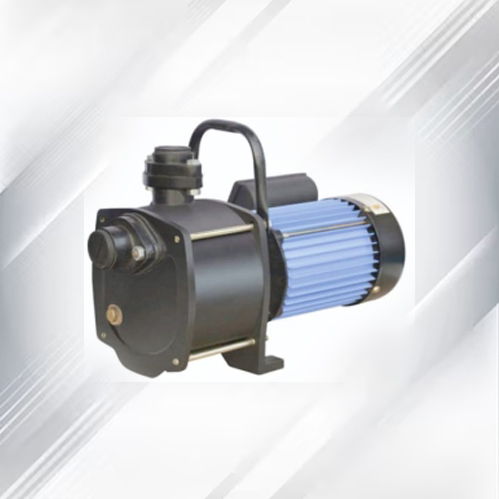

SHAKTI
| HP | SC |
|---|---|
| Shellow_Well | SHAKTI |
| Discharge (Lph) | 4000 |
| KW/HP | 1.0/0.75 |
| Rated Speed (rpm) | 2800 |
| Pipe Size (suc. X Del.) mm. | 25 X 25 |
| Head Range (meters) | 4-30 |
| Ampers | 4.0 |
| Rated Voltage (Volts) | 230 |
